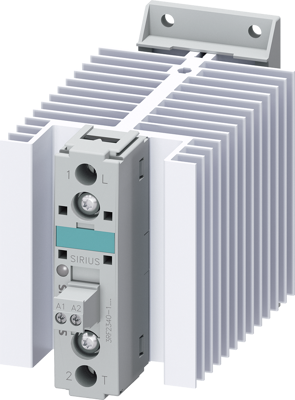

3RF2340-1BA04 | Siemens
Solid state contactor, 1 pole, 40 A, 48-460 VAC, 1 Form A (N/O), coil 15-24 VDC, screw connection, 3RF2340-1BA04
Order No.: 27H2846
EAN: 4011209573116
MPN:
3RF2340-1BA04
3RF23401BA04
Unit Price (€ / pc.)
97.6514 € *
Available: 0 pcs.
Leadtime: 1 Week **
Solid-state contactor 1-phase 3RF2 AC 15 / 20 A / 40 °C 48-460 V / 24 V DC Instantaneous switching Solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Halbleiterschütz | |
| Bemessungsspannung | 48-460 VAC | |
| Montage | DIN-Schiene | |
| Nennstrom | 40 A | |
| Polzahl | 1-polig | |
| Schaltfunktion | 1 Schließer | |
| Schutzart (IP) | IP20 | |
| Steuerspannung | 15-24 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Bleimonoxid (Bleioxid), Dibutylbis(pentan-2,4-dionato-O,O’)zinn |
