3RF2420-2AC55 | Siemens

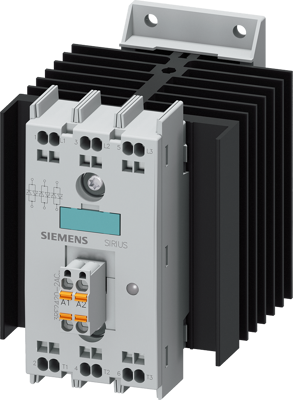

Solid state contactor, 3 pole, 22 A, 48-600 VAC, 3 Form A (N/O), coil 180-230 VAC, spring connection, 3RF2420-2AC55
Order No.: 27H2919
EAN: 4011209647121
MPN:
3RF2420-2AC55
3RF24202AC55
Unit Price (€ / pc.)
232.5379 € *
Available: 0 pcs.
Leadtime: 1 Week **
Solid-state contactor 3-phase 3RF2 AC 51 / 20 A / 40 °C 48-600 V / 230 V AC 3-phase controlled Spring-type terminal Blocking voltage 1200 V Solid-state contactor SIRIUS 3RF24 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
Technical specifications
| Connection | spring connection | |
| Version | solid state contactor | |
| Rated Voltage | 48-600 VAC | |
| Assembly | DIN rail | |
| Rated current | 22 A | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 180-230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide), Dibutylbis(pentane-2,4-dionato-O,O')tin |
