3RF3412-2BB04 | Siemens

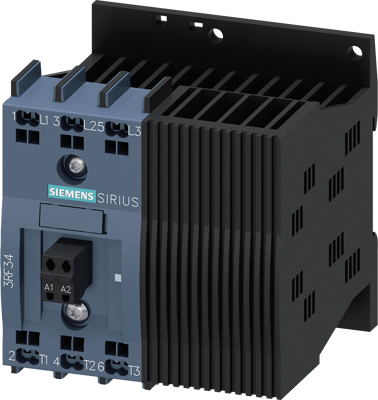

Solid state contactor, 3 pole, 12.5 A, 48-480 VAC, 2 Form A (N/O), coil 24 VDC, spring connection, 3RF3412-2BB04
Order No.: 27H2968
EAN: 4011209863521
MPN:
3RF3412-2BB04
3RF34122BB04
Unit Price (€ / pc.)
195.0648 € *
Available: 0 pcs.
Leadtime: 1 Week **
Solid-state contactor 3-phase 3RF3 AC 53 / 12.5 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Instantaneous switching Spring-type terminal Solid-state contactor SIRIUS 3RF34 for switching motors for frequent activation/deactivation, e.g. in conveyor systems.
Technical specifications
| Connection | spring connection | |
| Version | solid state contactor | |
| Rated Voltage | 48-480 VAC | |
| Assembly | DIN rail | |
| Rated current | 12.5 A | |
| Pin number | 3 pole | |
| Latching switching function | 2 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
