3RH1921-1XA22-0MA0 | Siemens

Name: Auxiliary switch block, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), screw connection, 3RH1921-1XA22-0MA0
Brand: Siemens
SKU: 81P7278
Price: 21.85 EUR
Availability: OutOfStock

Auxiliary switch block, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), screw connection, 3RH1921-1XA22-0MA0

Order No.: 81P7278

EAN: 4011209548046

MPN:

3RH1921-1XA22-0MA0

3RH19211XA220MA0

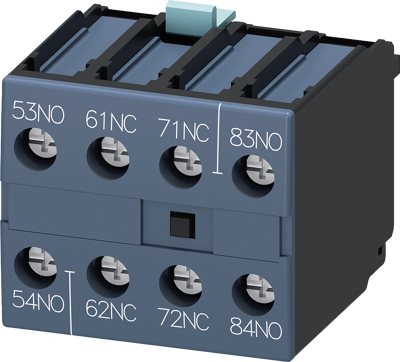

Image may differ

Key Specification:

Version auxiliary switch

Latching switching function 2 Form A (N/O) + 2 Form B (N/C)

Pin number 4 pole

Rated current 10 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

21.8484 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

21.85 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Front-side auxiliary switch, 2 NO contacts, 2 NC contacts, screw terminal, for contactors 3RT1, sequence numbers 5…8 auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit.

Technical specifications

	Connection	screw connection
	Version	auxiliary switch
	Assembly	Snap-on mounting
	Rated current	10 A
	Pin number	4 pole
	Latching switching function	2 Form A (N/O) + 2 Form B (N/C)
	Degree of protection (IP)	IP20
