3RH2122-1AF00-1AA0 | Siemens

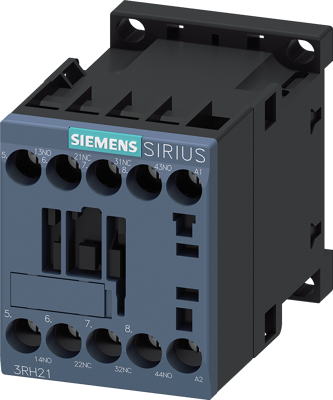

Auxiliary contactor, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), coil 110 VAC, screw connection, 3RH2122-1AF00-1AA0

Order No.: 27H3003
EAN: 4011209974722
MPN:
3RH2122-1AF00-1AA0
3RH21221AF001AA0
Siemens
3RH2122-1AF00-1AA0 Siemens Contactors
Image may differ
Print
Key Specification:
Ausführung Hilfsschütz
Schaltfunktion 2 Schließer + 2 Öffner
Polzahl 4-polig
Nennstrom 10 A
Show 23 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
44.6607 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
44.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.6607 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Contactor relay, 2 NO + 2 NC, 110 V AC, 50 / 60 Hz, Size S00, screw terminal upright mounting position Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
Anschluss Schraubanschluss
Ausführung Hilfsschütz
Montage DIN-Schiene
Nennstrom 10 A
Polzahl 4-polig
Schaltfunktion 2 Schließer + 2 Öffner
Schutzart (IP) IP20
Steuerspannung 110 VAC
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85364900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
