3RH2131-1AH00 | Siemens

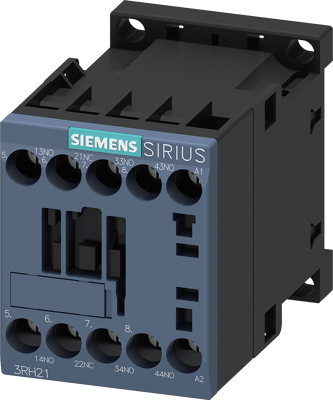

Auxiliary contactor, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), coil 48 VAC, screw connection, 3RH2131-1AH00

Order No.: 27H3044
EAN: 4011209847668
MPN:
3RH2131-1AH00
3RH21311AH00
Siemens
3RH2131-1AH00 Siemens Contactors
Image may differ
Print
Key Specification:
Version auxiliary contactor
Latching switching function 3 Form A (N/O) + 1 Form B (N/C)
Pin number 4 pole
Rated current 10 A
Show 18 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
40.9598 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
40.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
40.9598 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Contactor relay, 3 NO + 1 NC, 48 V AC, 50 / 60 Hz, Size S00, screw terminal Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
Connection screw connection
Version auxiliary contactor
Assembly DIN rail
Rated current 10 A
Pin number 4 pole
Latching switching function 3 Form A (N/O) + 1 Form B (N/C)
Degree of protection (IP) IP20
Control Voltage 48 VAC
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
