3RH2244-1AK60 | Siemens

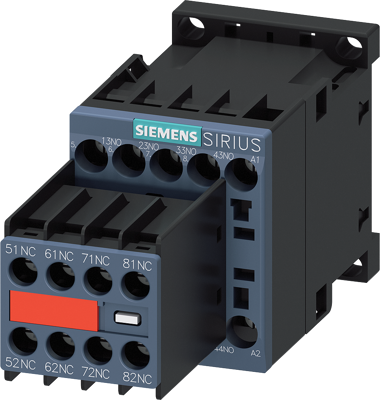

Auxiliary contactor, 8 pole, 10 A, 4 Form A (N/O) + 4 Form B (N/C), coil 110-120 VAC, screw connection, 3RH2244-1AK60

Order No.: 27H3106
EAN: 4011209910300
MPN:
3RH2244-1AK60
3RH22441AK60
Siemens
3RH2244-1AK60 Siemens Contactors
Image may differ
Print
Key Specification:
Version auxiliary contactor
Latching switching function 4 Form A (N/O) + 4 Form B (N/C)
Pin number 8 pole
Rated current 10 A
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
66.8661 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
66.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
66.8661 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Contactor relay, 4 NO + 4 NC, 110 V AC, 50 Hz / 120 V, 60 Hz, size S00, screw terminal, captive auxiliary switch Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
Connection screw connection
Version auxiliary contactor
Assembly DIN rail
Rated current 10 A
Pin number 8 pole
Latching switching function 4 Form A (N/O) + 4 Form B (N/C)
Degree of protection (IP) IP20
Control Voltage 110-120 VAC
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
