3RH2262-4AK60 | Siemens

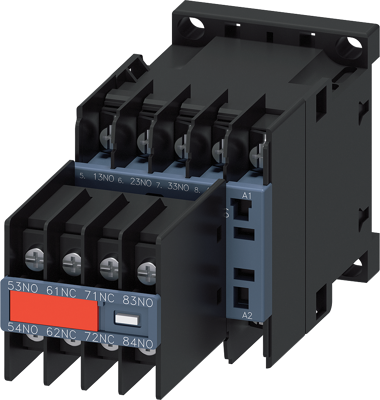

Name: Auxiliary contactor, 8 pole, 10 A, 6 Form A (N/O) + 2 Form B (N/C), coil 110-120 VAC, Ring cable lug connection, 3RH2262-4AK60
Brand: Siemens
SKU: 27H3121
Price: 66.87 EUR
Availability: OutOfStock

Auxiliary contactor, 8 pole, 10 A, 6 Form A (N/O) + 2 Form B (N/C), coil 110-120 VAC, Ring cable lug connection, 3RH2262-4AK60

Order No.: 27H3121

EAN: 4011209918405

MPN:

3RH2262-4AK60

3RH22624AK60

Image may differ

Key Specification:

Version auxiliary contactor

Latching switching function 6 Form A (N/O) + 2 Form B (N/C)

Pin number 8 pole

Rated current 10 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

66.8661 € *

Available: 0 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

66.87 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contactor relay, 6 NO + 2 NC, 110 V AC 50 Hz / 120 V 60 Hz, Size S00, Ring cable lug connection, Captive auxiliary switch, Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.

Technical specifications

	Connection	Ring cable lug connection
	Version	auxiliary contactor
	Assembly	DIN rail
	Rated current	10 A
	Pin number	8 pole
	Latching switching function	6 Form A (N/O) + 2 Form B (N/C)
	Degree of protection (IP)	IP00
	Control Voltage	110-120 VAC
