3RH2911-1GA13 | Siemens

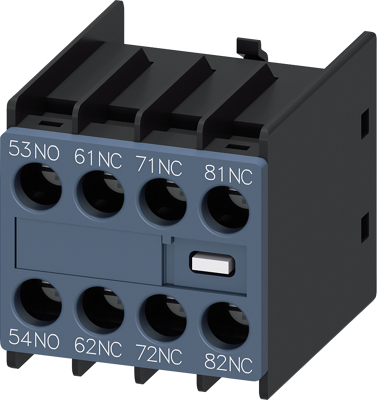

Auxiliary switch, 4 pole, 10 A, 1 Form A (N/O) + 3 Form B (N/C), screw connection, 3RH2911-1GA13
Order No.: 27H3166
EAN: 4011209829251
MPN:
3RH2911-1GA13
3RH29111GA13
Unit Price (€ / pc.)
20.4323 € *
Available: 0 pcs.
Leadtime: 1 Week **
Auxiliary switch, on the front, 1 NO + 3 NC, 53/54, 61/62, 71/72, 81/82, current path: 1 NO, 1 NC, 1 NC, 1 NC, screw terminal, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011) auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Connection | screw connection | |
| Version | auxiliary switch | |
| Assembly | DIN rail | |
| Rated current | 10 A | |
| Pin number | 4 pole | |
| Latching switching function | 1 Form A (N/O) + 3 Form B (N/C) | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
