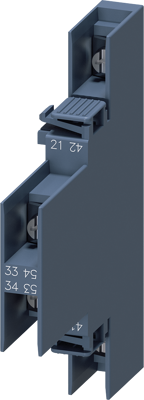

3RH2911-4DA11 | Siemens

Name: Auxiliary switch, 2 pole, 10 A, 1 Form A (N/O) + 1 Form B (N/C), Ring cable lug connection, 3RH2911-4DA11
Brand: Siemens
SKU: 80P7132
Price: 18.41 EUR
Availability: OutOfStock

Auxiliary switch, 2 pole, 10 A, 1 Form A (N/O) + 1 Form B (N/C), Ring cable lug connection, 3RH2911-4DA11

Order No.: 80P7132

EAN: 4011209791152

MPN:

3RH2911-4DA11

3RH29114DA11

Image may differ

Key Specification:

Version auxiliary switch

Latching switching function 1 Form A (N/O) + 1 Form B (N/C)

Pin number 2 pole

Rated current 10 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

18.4093 € *

Available: 0 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

18.41 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Auxiliary switch, lateral, 1 NO + 1 NC, on the left: 41/42, 53/54, on the right: 21/22, 33/34, current path: 1 NC, 1 NO, ring cable lug connection, for contactors 3RT2.1 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.

Technical specifications

	Connection	Ring cable lug connection
	Version	auxiliary switch
	Assembly	Snap-on mounting
	Rated current	10 A
	Pin number	2 pole
	Latching switching function	1 Form A (N/O) + 1 Form B (N/C)
	Degree of protection (IP)	IP00
