3RT1054-1NP36 | Siemens

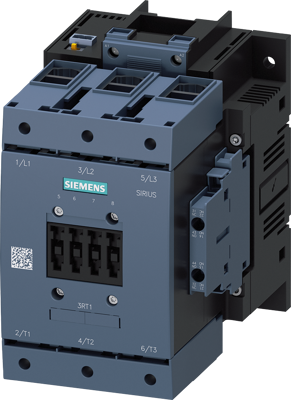

Power contactor, 3 pole, 115 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 200-277 V AC/DC, screw connection, 3RT1054-1NP36
Order No.: 27H3261
EAN: 4011209507036
MPN:
3RT1054-1NP36
3RT10541NP36
Unit Price (€ / pc.)
550.5892 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive: electronic main circuit: box terminal control and auxiliary circuit: screw terminal Power contactor SIRIUS 3RT1 for switching motors.
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| Rated Voltage | 400 V | |
| Assembly | screw mounting | |
| Rated current | 115 A | |
| Pin number | 3 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 200-277 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
