3RT1055-6PP35 | Siemens

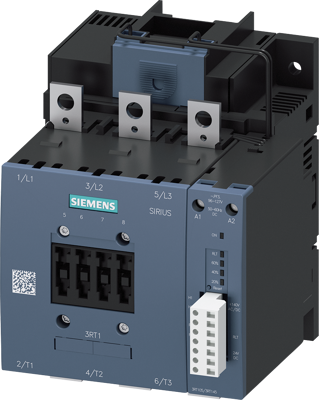

Power contactor, 3 pole, 150 A, 400 V, 1 Form A (N/O) + 1 Form B (N/C), coil 200-277 V AC/DC, screw connection, 3RT1055-6PP35
Order No.: 27H3367
EAN: 4011209510678
MPN:
3RT1055-6PP35
3RT10556PP35
Unit Price (€ / pc.)
859.3704 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3 150 A, 75 kW / 400 V AC (50-60 Hz) / DC Uc:200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 1 NO + 1 NC drive: electronic main circuit: busbar control and auxiliary circuit: screw terminal with remaining lifetime indicator Power contactor SIRIUS 3RT1 for switching motors.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Leistungsschütz | |
| Rated Voltage | 400 V | |
| Assembly | Schraubmontage | |
| Rated current | 150 A | |
| Pin number | 3-polig | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Degree of protection (IP) | IP00/IP20 | |
| Control Voltage | 200-277 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Bleimonoxid (Bleioxid), Blei-Titan-Zirkonnoxid, Blei |
