3RT1055-6SF36-3PA0 | Siemens

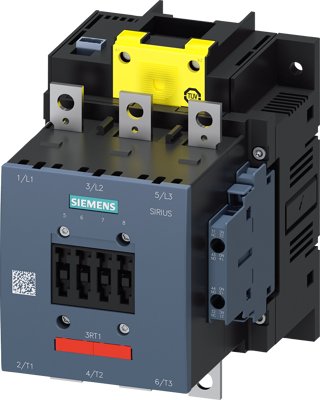

Power contactor, 3 pole, 150 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 96-127 V AC/DC, screw connection, 3RT1055-6SF36-3PA0
Order No.: 27H3369
EAN: 4047621043036
MPN:
3RT1055-6SF36-3PA0
3RT10556SF363PA0
Unit Price (€ / pc.)
726.8282 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3 150 A, 75 kW / 400 V AC (50-60 Hz) / DC Uc: 96-127 V x (0.8-1.1) F-PLC input 24 V DC 3-pole, auxiliary contacts 2 NO + 2 NC permanently mounted drive: electronic main circuit: busbar control and auxiliary circuit: screw terminal Power contactor SIRIUS 3RT1 for switching high-power motors, especially designed and certified for simple set-up of safety-oriented applications up to SIL CL 3.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Leistungsschütz | |
| Rated Voltage | 400 V | |
| Assembly | Schraubmontage | |
| Rated current | 150 A | |
| Pin number | 3-polig | |
| Latching switching function | 2 Schließer + 2 Öffner | |
| Degree of protection (IP) | IP00/IP20 | |
| Control Voltage | 96-127 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Bleimonoxid (Bleioxid), Blei-Titan-Zirkonnoxid, Blei |
