3RT1056-6NP36 | Siemens

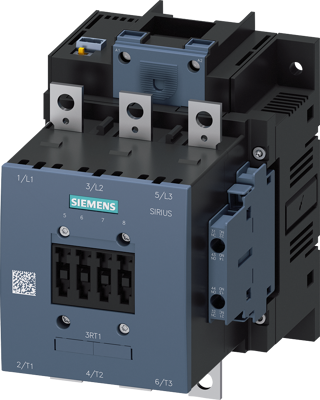

Power contactor, 3 pole, 185 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 200-277 V AC/DC, screw connection, 3RT1056-6NP36
Order No.: 27H3412
EAN: 4011209507623
MPN:
3RT1056-6NP36
3RT10566NP36
Unit Price (€ / pc.)
808.3908 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC Uc:200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive: electronic main circuit: busbar control and auxiliary circuit: screw terminal Power contactor SIRIUS 3RT1 for switching motors.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Leistungsschütz | |
| Bemessungsspannung | 400 V | |
| Montage | Schraubmontage | |
| Nennstrom | 185 A | |
| Polzahl | 3-polig | |
| Schaltfunktion | 2 Schließer + 2 Öffner | |
| Schutzart (IP) | IP00/IP20 | |
| Steuerspannung | 200-277 V AC/DC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
