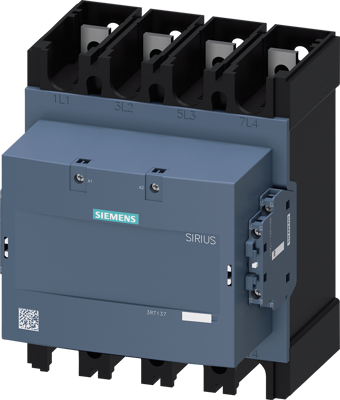

3RT1374-6AP36 | Siemens
Contactor, 4 pole, 500 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 100-250 V AC/DC, screw connection, 3RT1374-6AP36
Order No.: 27H3721
EAN: 4047621048888
MPN:
3RT1374-6AP36
3RT13746AP36
Unit Price (€ / pc.)
2,163.2772 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
2,163.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,163.2772 €
Contactor, AC-1, 500 A/400 V/40 °C, S12, 4-pole, 100-250 V AC/DC, 2 NO+2 NC, Connection rail/ screw terminal Simple, efficient and always up to date - SIRIUS modular system.
Technical specifications
| Connection | screw connection | |
| Version | contactor | |
| Rated Voltage | 400 V | |
| Assembly | screw mounting | |
| Rated current | 500 A | |
| Pin number | 4 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP00/IP20 | |
| Control Voltage | 100-250 V AC/DC |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
