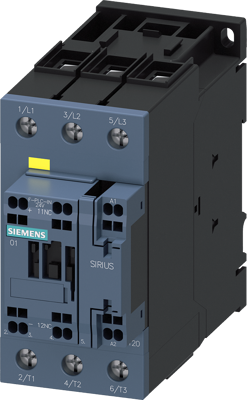

3RT2036-3SB30 | Siemens
Power contactor, 3 pole, 51 A, 400 V, 1 Form B (N/C), coil 21-33 V AC/DC, screw connection, 3RT2036-3SB30
Order No.: 27H4761
EAN: 4047621087108
MPN:
3RT2036-3SB30
3RT20363SB30
Unit Price (€ / pc.)
325.4769 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3, 51 A, 22 kW / 400 V, 3-pole, 21-33 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S2, F-PLC-IN.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Leistungsschütz | |
| Bemessungsspannung | 400 V | |
| Montage | DIN-Schiene | |
| Nennstrom | 51 A | |
| Polzahl | 3-polig | |
| Schaltfunktion | 1 Öffner | |
| Schutzart (IP) | IP20 | |
| Steuerspannung | 21-33 V AC/DC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Bleimonoxid (Bleioxid), Blei-Titan-Zirkonnoxid, Blei |
