3RT2038-3XF44-0LA2 | Siemens

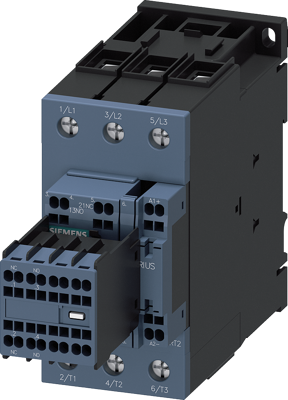

Power contactor, 3 pole, 80 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 110 VDC, screw connection, 3RT2038-3XF44-0LA2
Order No.: 27H4805
EAN: 4047621003535
MPN:
3RT2038-3XF44-0LA2
3RT20383XF440LA2
Unit Price (€ / pc.)
523.6357 € *
Available: 0 pcs.
Leadtime: 1 Week **
Traction contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 110 V DC, 0.7-1.25* Us, electronic drive, with integrated varistor, auxiliary contacts: 2 NO + 2 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S2, removable auxiliary switch Power contactor SIRIUS 3RT2 for switching motors under extreme conditions, e.g. for railway applications.
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| Rated Voltage | 400 V | |
| Assembly | DIN rail | |
| Rated current | 80 A | |
| Pin number | 3 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 110 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
