3RT2516-1AM20 | Siemens

Power contactor, 4 pole, 9 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 208 VAC, screw connection, 3RT2516-1AM20

Order No.: 27H4949
EAN: 4047621019741
MPN:
3RT2516-1AM20
3RT25161AM20
Siemens

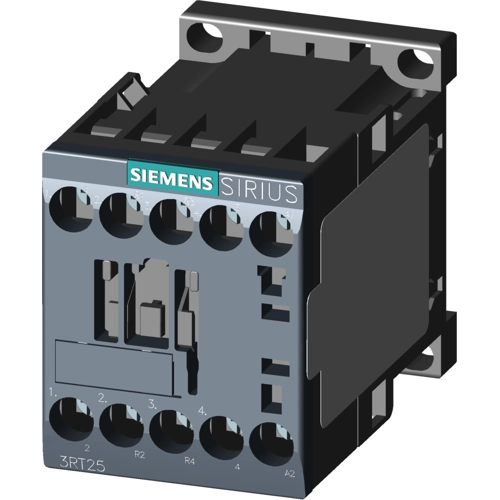

3RT2516-1AM20 Siemens Contactors
Image may differ
Print
Key Specification:
Version power contactor
Latching switching function 2 Form A (N/O) + 2 Form B (N/C)
Pin number 4 pole
Rated current 9 A
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
46.8741 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
46.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
46.8741 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Power contactor, AC-3, 9 A, 4 kW / 400 V, 4-pole, 208 V AC, 50/60 Hz, main contacts: 2 NO + 2 NC, screw terminal, size: S00 contactor SIRIUS 3RT25 for changing the polarity of hoisting gear motors or switching two separate loads.
Technical specifications
Connection screw connection
Version power contactor
Rated Voltage 400 V
Assembly DIN rail
Rated current 9 A
Pin number 4 pole
Latching switching function 2 Form A (N/O) + 2 Form B (N/C)
Degree of protection (IP) IP20
Control Voltage 208 VAC
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
