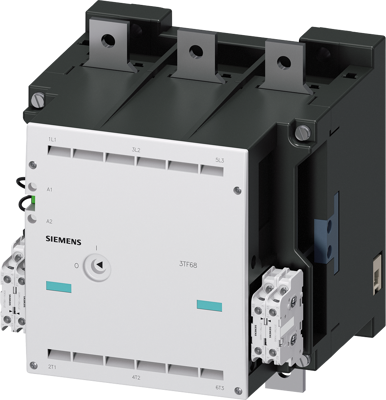

3TF6844-8CF7 | Siemens
Vacuum contactor, 3 pole, 630 A, 4 Form A (N/O) + 4 Form B (N/C), coil 110-132 VAC, screw connection, 3TF6844-8CF7
Order No.: 27H5318
EAN: 4011209175945
MPN:
3TF6844-8CF7
3TF68448CF7
Unit Price (€ / pc.)
4,518.6561 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
4,518.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,518.6561 €
Vacuum contactor AC-3e/AC-3 630 A, 335 kW / 400 V, Ue 1000 V, 3-pole, Uc: 110-132 V AC(50/60 Hz) drive: conventional auxiliary contacts 4 NO + 4 NC main circuit: busbar control and auxiliary circuit: screw terminal Vacuum contactor 3TF6 for switching motors.
Technical specifications
| Connection | screw connection | |
| Version | vacuum contactor | |
| Assembly | screw mounting | |
| Rated current | 630 A | |
| Pin number | 3 pole | |
| Latching switching function | 4 Form A (N/O) + 4 Form B (N/C) | |
| Degree of protection (IP) | IP00/IP20 | |
| Control Voltage | 110-132 VAC |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
