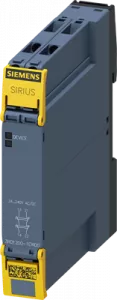

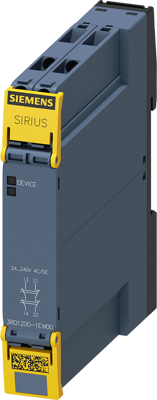

3RQ1200-1EW00 | Siemens
Coupling relay 1 Form A (N/O) + 1 Form B (N/C), 2 A, 240 V (DC), 240 V (AC), 3RQ1200-1EW00
Order No.: 27H8771
EAN: 4047621077505
MPN:
3RQ1200-1EW00
3RQ12001EW00
Unit Price (€ / pc.)
155.5925 € *
Available: 0 pcs.
Leadtime: 1 Week **
Force-guided coupling relay in industrial enclosure 1 NO contact / 1 NC contact 24 V to 240 V AC/DC SIL 3 / PL e screw terminal Force-guided coupling relay SIRIUS 3RQ1 For fail-safe coupling of control signals to and from a controller and for contact extension of 3SK safety relays.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Koppelrelais | |
| Contact type | 1 Schließer + 1 Öffner | |
| Contact material | AgNi + Au | |
| Rated voltage (AC) | 240 V | |
| Rated voltage (DC) | 240 V | |
| Rated current | 2 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, 2-Methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-on, Bleimonoxid (Bleioxid) |
