3RQ3018-2AE00 | Siemens
Relay coupler 1 Form C (NO/NC), 3 A, 115 V (DC), 115 V (AC), 3RQ3018-2AE00
Order No.: 27H8788
EAN: 4047621000923
MPN:
3RQ3018-2AE00
3RQ30182AE00
Unit Price (€ / pc.)
36.4735 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.47 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4735 €
5 pcs.
35.7595 €
*incl. VAT plus shipping costs
**Subject to prior sale

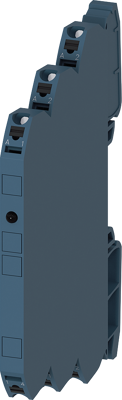

Output coupler Relay coupler, 1 change-over contact 115 V AC/DC Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 6A Coupling relays with relay output (not plug-in) SIRIUS 3RQ3 for electrical isolation, amplification and signal adjustment between the controller and I/O.
Technical specifications
| Connection | spring-clamp connection | |
| Version | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| LED display | Yes | |
| Rated voltage (AC) | 115 V | |
| Rated voltage (DC) | 115 V | |
| Rated current | 3 A | |
| Degree of protection (IP) | IP20 | |
| Status display | LED, green |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
