3RQ3018-2AN08-0AA0 | Siemens

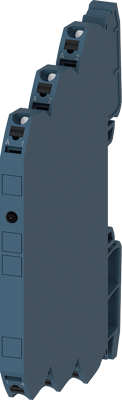

Relay coupler 1 Form C (NO/NC), 3 A, 110 V (DC), 3RQ3018-2AN08-0AA0
Order No.: 27H8792
EAN: 4047621003672
MPN:
3RQ3018-2AN08-0AA0
3RQ30182AN080AA0
Unit Price (€ / pc.)
34.6171 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
34.62 € *
Price list
Quantity
Price per unit*
1 pcs.
34.6171 €
5 pcs.
33.9388 €
*incl. VAT plus shipping costs
**Subject to prior sale
Output coupler relay coupler, 1 change-over contact 110 V DC working range 0.7 to 1.25 x US width 6.2 mm spring-type terminal (push-in) thermal current 6 A (see derating characteristic) Coupling relays with relay output (not plug-in) SIRIUS 3RQ3 for electrical isolation, amplification and signal adjustment between the controller and I/O.
Technical specifications
| Connection | spring-clamp connection | |
| Version | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| LED display | Yes | |
| Rated voltage (DC) | 110 V | |
| Rated current | 3 A | |
| Degree of protection (IP) | IP20 | |
| Status display | LED, green |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
