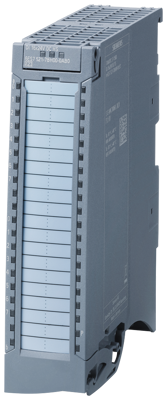

6ES75217BH000AB0, Siemens
SIMATIC S7-1500, digital input module DI 16x24 V DC AUX- 16 channels in groups of 8- for 24 V encoder- sensor supply 24 V DC- input type 2 (IEC 61131)- input delay parameterizable 0.05.20 ms- isochronous mode up to 250 µs- integrated counting function up to 20 kHz- pulse stretching- chatter monitoring- signal inversion diagnostics- hardware interrupts: front connector (screw terminals or push-in) and, if applicable, order shield set separately SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. The scalable configuration of an ET 200MP station is ensured by the wide range of signal modules. A large number of digital and analog input and output modules are available. This ensures the universal applicability of the system.
