6EP1334-2BA20 | Siemens

Power supply, 24 to 28 VDC, 10 A, 6EP1334-2BA20

Order No.: 25K498
EAN: 4099891283704
MPN:
6EP1334-2BA20
6EP13342BA20
Series: SITOP
Siemens
6EP1334-2BA20 Siemens DIN Rail Power Supplies

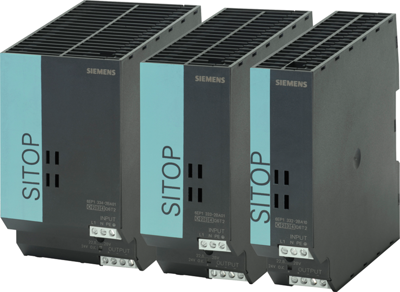

Image may differ
Unit Price (€ / pc.)
320.7883 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
320.79 € *
Price list
Quantity
Price per unit*
1 pcs.
320.7883 €
3 pcs.
183.4504 €
10 pcs.
177.9407 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply modules, single-phase and 3-phase, type Siemens SITOP smart 6EP.

For installation on standard mounting rails; Output voltage: 24 VDC. Adjustment range: 24 to 28 V. Tolerance: ±3.0 %. Overload strength: 150 % of the output current for 5.0 s/min, continuous duty cycle 120 % of the output current +45 °C. Degree of protection (EN 60529): IP 20. Ambient temperature: 0 to +60 °C.

Single-phase, 10 A output current, line harmonics limiting, type 6EP1.

Rated input voltage 120/230 VAC (85 to 132 VAC/170 to 264 VAC); Rated frequency: 50/60 Hz. Power failure backup: max. 20 ms. Rated input current: 4.1/2.0 A. Efficiency: 91 %. Line harmonics limiting to EN 61000-3-2. Dimensions: W 70, H 125, D 125 mm. Weight: 800 g.

Type: 6EP1334-2BA20, power supply module

Technical specifications
Number of outputs 1
Output voltage DC 24 to 28 VDC
Output current 10 A
Width 70 mm
Input voltage AC 85-264 VAC
Height 125 mm
Degree of protection (IP) IP20
Depth 125 mm
efficiency 91 %
Logistics
Country of origin AT
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
