3SU1100-1HB20-1CF0 | Siemens

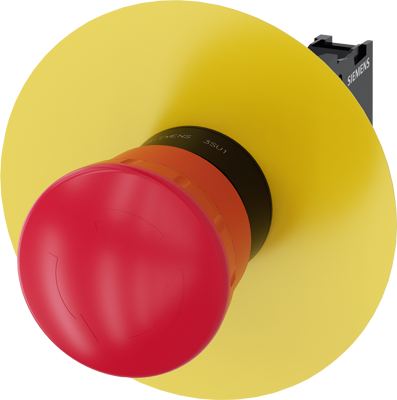

Emergency stop mushroom pushbutton, 22 mm, round,plastic, red, 1 NC
Order No.: 27H1150
EAN: 4011209957824
MPN:
3SU1100-1HB20-1CF0
3SU11001HB201CF0
Unit Price (€ / pc.)
45.4580 € *
Available: 0 pcs.
Leadtime: On Request **
EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch, with yellow backing plate, without inscription, with holder, 1 NC, screw terminal EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Technical specifications
| Type of labeling | red | |
| Type of mounting | panel mounting | |
| illuminated | No | |
| Collar shape of the front frame | round | |
| Installation diameter | 22.3 mm | |
| Height | 40 mm | |
| Contact function | latching | |
| Rated voltage | 500 V | |
| Resetting | rotary release | |
| Latching switching function | 1 Form B (N/C) | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
