5SV3647-4KK14 | Siemens
Residual current circuit breaker, 4 pole, 80 A, 300 mA, type B, 400 V, 5SV3647-4KK14
Order No.: 81P9473
EAN: 4001869549217
MPN:
5SV3647-4KK14
5SV36474KK14
Unit Price (€ / pc.)
1,356.60 € *
Available: 0 pcs.
Leadtime: 1 Week **

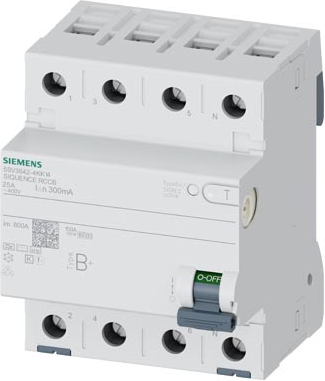

Residual current operated circuit breaker, 5SV3647-4KK14, Siemens
Residual current operated circuit breaker, 4-pole, Type B+, Short-time-delayed, In: 80 A, 300 mA, Un AC: 400 V SIGRES: harsh ambient conditions, Extended test interval.
Technical specifications
| Pin number | 4-polig | |
| Rated current | 80 A | |
| Rated residual current | 300 mA | |
| Fault current type | B | |
| Rated Voltage | 400 V | |
| Assembly | DIN-Schiene | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
