3NW7252 | Siemens

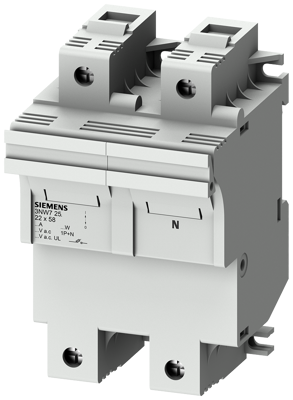

Fuse holder, 22 x 58 mm, 100 A, 690 V, DIN rail, 3NW7252

Order No.: 70P6377
EAN: 4001869253305
MPN:
3NW7252
3NW7252
Series: SENTRON
Siemens
3NW7252 Siemens Fuse Holders
Image may differ
Unit Price (€ / pc.)
87.5364 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
87.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
87.5364 €

3NW7252, Siemens

SENTRON, cylindrical fuse holder, 22x58 mm, 1P+N, In: 100 A, Un AC: 690 V, LED signal detector SENTRON cylindrical fuse system for selective line protection. Siemens cylindrical fuse-links and fuse holders are suitable for use in industrial plants. They are standard in Europe and are tested and approved as fuse disconnectors, but not for switching under load. For load switching, Siemens offers an extensive portfolio of products, e.g. 3KF. The Siemens cylindrical fuse systems are characterized primarily by:.

Features

  • Compliance with the standards IEC 60269-1, -2 and -3
  • Compliance with the standard UL 51
  • Fast fuse change due to space for spare fuses in the slide-in unit
  • Fast detection of a tripped fuse due to LED that flashes when the fuse trips
Technical specifications
Version closed
Type of mounting DIN rail
For Fuse 22 x 58 mm
Rated voltage 690 V
Rated current 100 A
Degree of protection (IP) IP20
Logistics
Country of origin SI
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
