3NW7511-5HG | Siemens

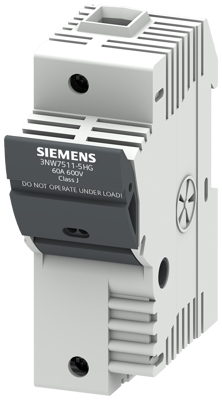

Fuse holder, class J, 60 A, 600 V, DIN rail, 3NW7511-5HG
Unit Price (€ / pc.)
36.6163 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.62 € *
Price list
Quantity
Price per unit*
1 pcs.
36.6163 €
6 pcs.
35.8904 €
*incl. VAT plus shipping costs
**Subject to prior sale
3NW75115HG, Siemens
SENTRON, fuse holder, Class J, 1-pole, In: 60 A, Un AC: 600 V, for mounting on DIN rail, respect national installation rules! UL fuse systems class CC and class J. As an important component of the SENTRON protective components for electronic installations, the 3NW fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short-circuit. Class CC fuses are used for branch circuit protection applications. Class J fuse links are used for branch circuit protection and in the feeder circuit. Key features of the Siemens NW fuses:.
Features
- Easier export thanks to UL and CSA approvals for typical applications on the North American market
- Modern design with touch protection ensures safe installation
- Dead-state fuse replacement in fuse holders possible
Technical specifications
| Version | closed | |
| Type of mounting | DIN rail | |
| For Fuse | class J | |
| Rated voltage | 600 V | |
| Rated current | 60 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
