6AV2124-0QC24-0BX0 | Siemens
15.6" HMI panel, touch operation, 1366 x 768, for support arm and extension elements, 6AV2124-0QC24-0BX0
Unit Price (€ / pc.)
4,561.5675 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4,561.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,561.5675 €
6AV21240QC240BX0, Siemens

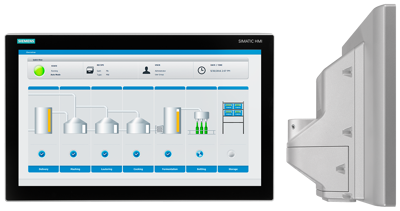

SIMATIC HMI TP1500 Comfort Pro, for support arm (expandable, round pipe) and Extension Unit, Comfort Panel, touch operation, 15 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP The Comfort Panels are designed for implementing high-performance visualization tasks at machine-level. The Comfort Panels PRO are a device series with high degree of protection IP65 (NEMA4) and flexible mounting options - directly on the machine via special adapters, on a stand, or on a support arm system.
Technical specifications
| Resolution | 1366 x 768 | |
| Version | touch operation | |
| screen diagonal | 15.6" | |
| Width | 396 mm | |
| Suitable for | support arm and extension elements | |
| Height | 256 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide), 4,4'-isopropylidenediphenol, Silicic acid, lead salt |
