3NA7824-6 | Siemens

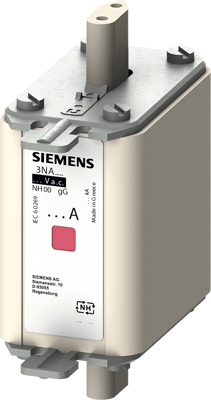

NH fuse NH00, 80 A, gG, 250 V (DC), 690 V (AC), 120 kA breaking capacity, 3NA7824-6
Order No.: 27H2457
EAN: 4001869151403
MPN:
3NA7824-6
3NA78246
Unit Price (€ / pc.)
24.0856 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.09 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0856 €
3 pcs.
23.6215 €
*incl. VAT plus shipping costs
**Subject to prior sale
LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 690 V, Un DC: 250 V, Combined indicator, live grip lugs LV HRC fuse link SENTRON 3NA7 for selective system and line protection.
Technical specifications
| Version | NH fuse | |
| Tripping characteristics | gG | |
| Breaking capacity | 120 kA | |
| Design | NH00 | |
| Width | 30 mm | |
| Enclosure | ceramic tube | |
| Height | 77.8 mm | |
| Length | 59.7 mm | |
| Rated voltage (AC) | 690 V | |
| Rated voltage (DC) | 250 V | |
| Rated current | 80 A |
Download
Logistics
| Country of origin | GR |
| Customs tariff number | 85361090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
