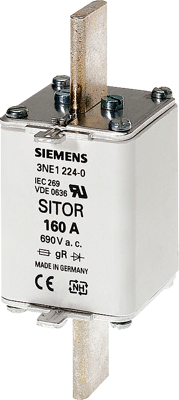

3NE1224-2 | Siemens

SITOR fuse link, with blade contacts, NH1, In: 160 A, gR, Un AC: 690 V, Un DC: 250 V, front indicator Fuses for stringent requirements in photovoltaic applications. Siemens photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. All Siemens photovoltaic fuse systems therefore comply with the standard IEC 60269-6.

Features

• Reliable protection of the modules and the module connection cables in the event of reverse currents
• Compliance with the UL standard UL 2579 (for IEC cylindrical fuses)
• Safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs
• Safe separation when the fuse holder/fuse base is open
• Long service life despite frequent and very variable load currents
