3NE3234-0MK08 | Siemens

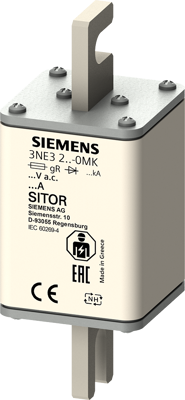

NH fuse NH1, 500 A, aR, 600 V (DC), 1 kV (AC), 3NE3234-0MK08

Order No.: 80P6966
EAN: 4001869497549
MPN:
3NE3234-0MK08
3NE32340MK08
Series: SITOR
Siemens
3NE3234-0MK08 Siemens Micro Fuses
Image may differ
Unit Price (€ / pc.)
168.6111 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
168.61 € *
Price list
Quantity
Price per unit*
1 pcs.
168.6111 €
3 pcs.
165.3029 €
*incl. VAT plus shipping costs
**Subject to prior sale

SITOR fuse link, with slotted blade contacts, NH1, In: 500 A, aR, Un AC: 1000 V, Un DC: 600 V, without Indicator Fuses for stringent requirements in photovoltaic applications. Siemens photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. All Siemens photovoltaic fuse systems therefore comply with the standard IEC 60269-6.

Features

  • Reliable protection of the modules and the module connection cables in the event of reverse currents
  • Compliance with the UL standard UL 2579 (for IEC cylindrical fuses)
  • Safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs
  • Safe separation when the fuse holder/fuse base is open
  • Long service life despite frequent and very variable load currents
Technical specifications
Version NH fuse
Tripping characteristics aR
Design NH1
Enclosure ceramic tube
Rated voltage (AC) 1 kV
Rated voltage (DC) 600 V
Rated current 500 A
Logistics
Country of origin GR
Customs tariff number 85361090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
