3NE4124 | Siemens

NH fuse NH0, 160 A, aR, 440 V (DC), 1 kV (AC), 100 kA breaking capacity, 3NE4124

Order No.: 80P6999
EAN: 4011209005099
MPN:
3NE4124
3NE4124
Series: SITOR
Siemens
3NE4124 Siemens Micro Fuses

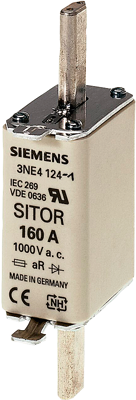

Image may differ
Unit Price (€ / pc.)
81.2056 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
81.21 € *
Price list
Quantity
Price per unit*
1 pcs.
81.2056 €
3 pcs.
79.6110 €
*incl. VAT plus shipping costs
**Subject to prior sale

SITOR fuse link, with blade contacts, NH0, In: 160 A, aR, Un AC: 1000 V, Un DC: 440 V, front indicator Fuses for stringent requirements in photovoltaic applications. Siemens photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. All Siemens photovoltaic fuse systems therefore comply with the standard IEC 60269-6.

Features

  • Reliable protection of the modules and the module connection cables in the event of reverse currents
  • Compliance with the UL standard UL 2579 (for IEC cylindrical fuses)
  • Safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs
  • Safe separation when the fuse holder/fuse base is open
  • Long service life despite frequent and very variable load currents
Technical specifications
Version NH fuse
Tripping characteristics aR
Breaking capacity 100 kA
Design NH0
Width 30 mm
Enclosure ceramic tube
Height 125 mm
Length 58 mm
Rated voltage (AC) 1 kV
Rated voltage (DC) 440 V
Rated current 160 A
Logistics
Country of origin GR
Customs tariff number 85361090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
