3NW1015-0HG | Siemens
Microfuses 10.3 x 38 mm, 2 A, T, 600 V (AC), 200 kA breaking capacity, 3NW1015-0HG
Unit Price (€ / pc.)
19.9206 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.92 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9206 €
10 pcs.
19.5279 €
*incl. VAT plus shipping costs
**Subject to prior sale
3NW10150HG, Siemens

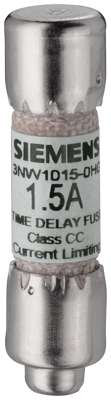

SENTRON, cylindrical fuse link, Class CC, 1.5 A, time-lag, Un AC: 600 V, respect national installation rules! for protection of control transformers, reactors and selenoids UL fuse systems class CC and class J. As an important component of the SENTRON protective components for electronic installations, the 3NW fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short-circuit. Class CC fuses are used for branch circuit protection applications. Class J fuse links are used for branch circuit protection and in the feeder circuit. Key features of the Siemens NW fuses:.
Features
- Easier export thanks to UL and CSA approvals for typical applications on the North American market
- Modern design with touch protection ensures safe installation
- Dead-state fuse replacement in fuse holders possible
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 200 kA | |
| Design | 10.3 x 38 mm | |
| diameter | 10.3 mm | |
| Enclosure | glass tube | |
| Length | 38 mm | |
| Rated voltage (AC) | 600 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
