3RR2243-3FA30 | Siemens
Monitoring relays, apparent/active current monitoring 8-80 A, 1 Form C (NO/NC), 24 V (DC), 16 A, 3RR2243-3FA30
Order No.: 27H3242
EAN: 4011209937789
MPN:
3RR2243-3FA30
3RR22433FA30
Unit Price (€ / pc.)
294.9534 € *
Available: 0 pcs.
Leadtime: 1 Week **

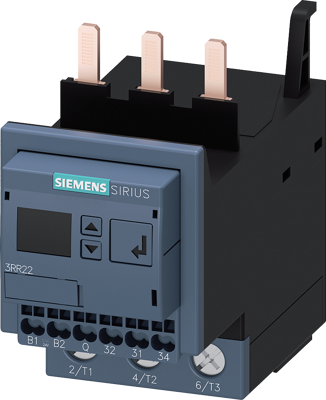

Monitoring relay, can be mounted to Contactor 3RT2, Size S2 standard, digitally adjustable Apparant/active current monitoring 8...80 A, 20...400 Hz, 3-phase Supply 24 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min spring-type connection system Monitoring relays SIRIUS 3RR2 for plugging into SIRIUS 3RT2 contactors or for stand-alone installation for multi-phase current monitoring of the entire plant or of the driven process.
Technical specifications
| Anschluss | Schraubanschluss/Federklemmanschluss | |
| Ausführung | Schein-/Wirkstromüberwachung 8-80 A | |
| Kontaktart | 1 Wechsler | |
| Schaltstrom | 16 A | |
| Spulenspannung (DC) | 24 V |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, 2-Methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-on, Bleimonoxid (Bleioxid) |
