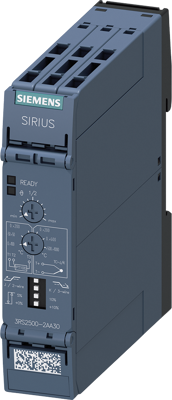

3RS2500-2AA30 | Siemens
Temperature relay, PT100, thermocouple J, K, 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 5 A, 3RS2500-2AA30
Order No.: 27H8833
EAN: 4047621058795
MPN:
3RS2500-2AA30
3RS25002AA30
Unit Price (€ / pc.)
163.863 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Temperature monitoring relay Pt100, thermocouple J, K 1 threshold value, width 22.5 mm Overshoot and undershoot 24 V AC/DC 1 change-over contact, quiescent current principle Spring-type terminal (push-in) Temperature monitoring relay SIRIUS 3RS2 for the measurement of temperatures in solid, liquid and gaseous media, e.g. for open and closed loop control of processes or for protecting motors and plants against excessive temperatures.
Technical specifications
| Connection | spring-clamp connection | |
| Version | PT100, thermocouple J, K | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| switching current | 5 A | |
| Coil voltage (AC) | 24 V | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
