3UG4825-2CA40 | Siemens

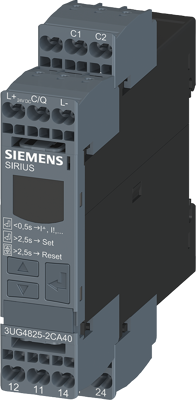

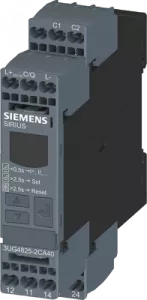

Monitoring relays, digital, for residual current monitoring (with current transformer 3UL23), 2 Form C (NO/NC), 24 V (DC), 5 A, 3UG4825-2CA40
Order No.: 27H9025
EAN: 4011209912540
MPN:
3UG4825-2CA40
3UG48252CA40
Unit Price (€ / pc.)
281.673 € *
Available: 0 pcs.
Leadtime: 1 Week **
Digital monitoring relay for residual current monitoring with residual-current transformer 3UL23 for IO-Link Setting range 0.03 A to 40 A separate for warning threshold and switch-off value ON delay and tripping delay 0 to 999.9 s Shutdown hysteresis up to 50% Warning hysteresis 5% fixed Width 22.5mm, 2 change-over contacts with or without fault buffer spring-type connection system Residual current monitoring relay with digital setting SIRIUS 3UG4 for monitoring plants for residual currents, e.g. due to dust deposits or moisture, porous cables and leads, or capacitive residual currents.
Technical specifications
| Connection | spring-clamp connection | |
| Version | digital, for residual current monitoring (with current transformer 3UL23) | |
| Contact type | 2 Form C (NO/NC) | |
| switching current | 5 A | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
