3RB2056-2FX2 | Siemens

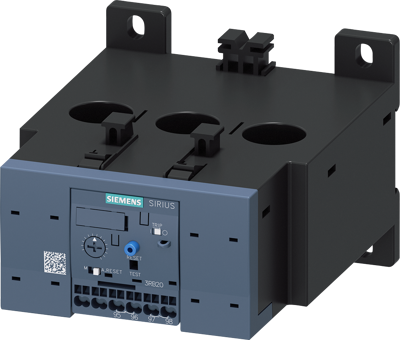

Overload protection relay, 3 pole, 50 to 200 A, 200 A, spring connection, 3RB2056-2FX2
Order No.: 27H8477
EAN: 4011209638341
MPN:
3RB2056-2FX2
3RB20562FX2
Unit Price (€ / pc.)
291.0621 € *
Available: 0 pcs.
Leadtime: On Request **
Overload relay 50...200 A for motor protection Size S6, Class 20E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB2 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Connection | spring connection | |
| Version | Overload relay | |
| Release | 50 to 200 A | |
| rated voltage (AC) | 1000 V | |
| Actuator | slide switch | |
| Assembly | panel mounting | |
| Rated current | 200 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP00/IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
