3RB3016-1PE0 | Siemens

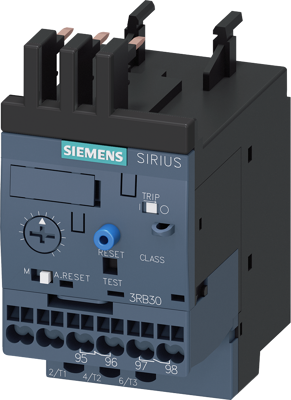

Overload protection relay, 3 pole, 1 to 4 A, 4 A, spring connection, 3RB3016-1PE0
Order No.: 27H2647
EAN: 4011209748835
MPN:
3RB3016-1PE0
3RB30161PE0
Unit Price (€ / pc.)
91.035 € *
Available: 0 pcs.
Leadtime: On Request **
Overload relay 1...4 A Electronic For motor protection Size S00, Class 10E Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Connection | spring connection | |
| Version | Overload relay | |
| Release | 1 to 4 A | |
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Assembly | panel mounting | |
| Rated current | 4 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead monoxide ]lead(II) oxide] |
