3RB3016-1TB0 | Siemens

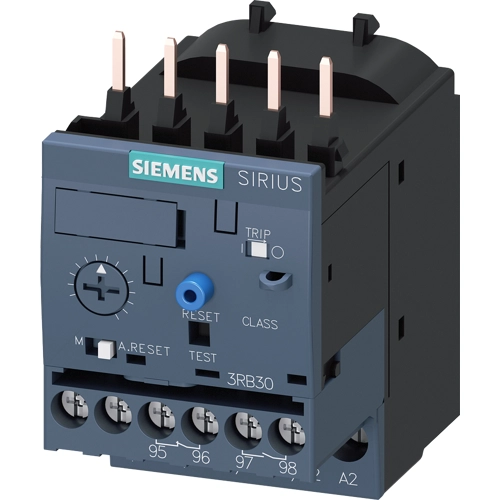

Overload protection relay, 3 pole, 4 to 16 A, 16 A, screw connection, 3RB3016-1TB0
Order No.: 27H2652
EAN: 4011209748651
MPN:
3RB3016-1TB0
3RB30161TB0
Unit Price (€ / pc.)
91.035 € *
Available: 0 pcs.
Leadtime: 1 Week **
Overload relay 4...16 A Electronic For motor protection Size S00, Class 10E Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Überlastrelais | |
| Release | 4 bis 16 A | |
| rated voltage (AC) | 690 V | |
| Actuator | Schiebeschalter | |
| Assembly | Panelmontage | |
| Rated current | 16 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, Bleimonoxid (Bleioxid) |
