3RB3016-2SB0 | Siemens

Overload protection relay, 3 pole, 3 to 12 A, 12 A, screw connection, 3RB3016-2SB0

Order No.: 27H2660
EAN: 4011209748699
MPN:
3RB3016-2SB0
3RB30162SB0
Siemens

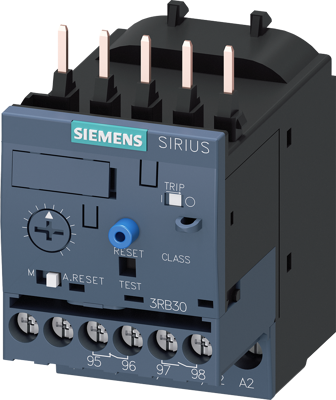

3RB3016-2SB0 Siemens Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
106.7549 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
106.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
106.7549 €
Overload relay 3...12 A Electronic For motor protection Size S00, Class 20E Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
Connection screw connection
Version Overload relay
Release 3 to 12 A
rated voltage (AC) 690 V
Actuator slide switch
Assembly panel mounting
Rated current 12 A
Network frequency 50/60 Hz
Pin number 3 pole
Degree of protection (IP) IP20
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead monoxide ]lead(II) oxide]
