3RB3036-1WX1 | Siemens

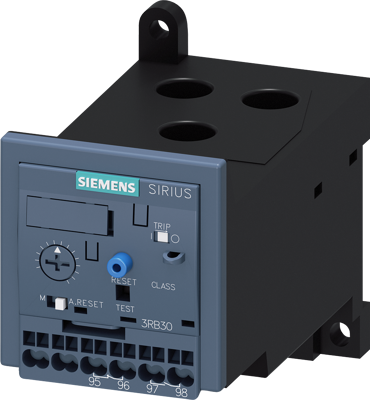

Overload protection relay, 3 pole, 20 to 80 A, 80 A, spring connection, 3RB3036-1WX1

Order No.: 27H8499
EAN: 4011209936447
MPN:
3RB3036-1WX1
3RB30361WX1
Siemens
3RB3036-1WX1 Siemens Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
206.7744 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
206.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
206.7744 €
Overload relay 20...80 A Electronic For motor protection Size S2, Class 10E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
Connection spring connection
Version Overload relay
Release 20 to 80 A
rated voltage (AC) 690 V
Actuator slide switch
Assembly panel mounting
Rated current 80 A
Network frequency 50/60 Hz
Pin number 3 pole
Degree of protection (IP) IP20
Logistics
Country of origin CZ
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, lead monoxide (lead oxide)
