3RB3113-4TE0 | Siemens

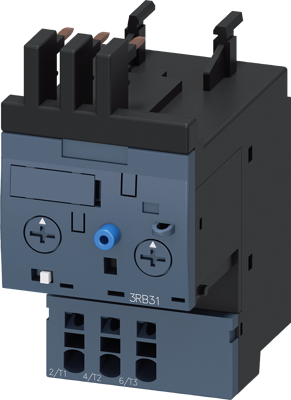

Overload protection relay, 3 pole, 4 to 16 A, 16 A, spring connection, 3RB3113-4TE0
Order No.: 27H2707
EAN: 4011209749092
MPN:
3RB3113-4TE0
3RB31134TE0
Unit Price (€ / pc.)
167.7543 € *
Available: 0 pcs.
Leadtime: On Request **
Overload relay 4...16 A Electronic For motor protection Size S00, Class 5...30 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset Internal ground fault detection solid-state overload relay SIRIUS 3RB3 for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Technical specifications
| Connection | spring connection | |
| Version | Overload relay | |
| Release | 4 to 16 A | |
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Assembly | panel mounting | |
| Rated current | 16 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
