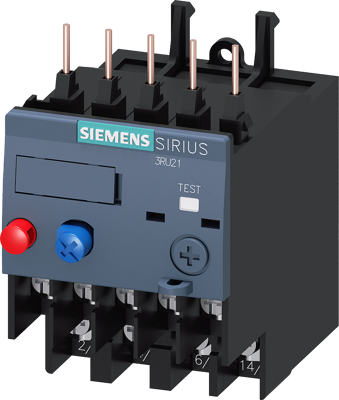

3RU2116-1KJ0 | Siemens
Overload protection relay, 3 pole, 9 to 12.5 A, 12.5 A, Ring cable lug connection, 3RU2116-1KJ0
Order No.: 27H5231
EAN: 4011209782549
MPN:
3RU2116-1KJ0
3RU21161KJ0
Unit Price (€ / pc.)
64.4742 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Overload relay 9.0...12.5 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure.
Technical specifications
| Connection | Ring cable lug connection | |
| Version | Overload relay | |
| Release | 9 to 12.5 A | |
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Assembly | panel mounting | |
| Rated current | 12.5 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP00 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
