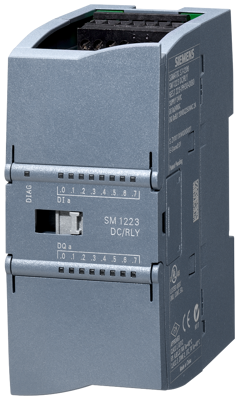

6ES7223-1PH32-0XB0 | Siemens
SIMATIC S7-1200 SM 1223, DI 8x24 V DC, DQ 8x relay
Order No.: 70P4787
EAN: 6940408101999
MPN:
6ES7223-1PH32-0XB0
6ES72231PH320XB0
Series: SIMATIC S7-1200
Unit Price (€ / pc.)
238.5831 € *
Available: 0 pcs.
Leadtime: On Request **
6ES72231PH320XB0, Siemens
SIMATIC S7-1200, Digital I/O SM 1223, 8 DI/8 DO, 8 DI 24 V DC, Sink/Source, 8 DO, relay 2 A SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure.
Technical specifications
| Number of digital outputs | 8 | |
| Number of digital inputs | 8 | |
| Number of I/Os | 8 | |
| Version | I/O module | |
| Width | 45 mm | |
| Suitable for | SIMATIC S7-1200 | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Depth | 75 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
