3SE5112-0BH50 | Siemens

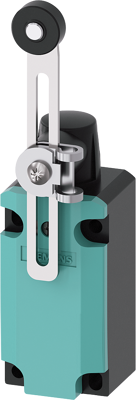

Position switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), adjustable swivel lever, screw connection, IP66/IP67, 3SE5112-0BH50
Order No.: 80P7372
EAN: 4011209692008
MPN:
3SE5112-0BH50
3SE51120BH50
Unit Price (€ / pc.)
74.6249 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch metal enclosur 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC slow-action contacts Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and plastic roller 19 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Anschluss | Schraubanschluss | |
| Betätiger | Schwenkhebel verstellbar | |
| Polzahl | 2-polig | |
| Schaltfunktion | 1 Schließer + 1 Öffner | |
| Schutzart (IP) | IP66/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
