3SE5112-0CD02-1AA7 | Siemens

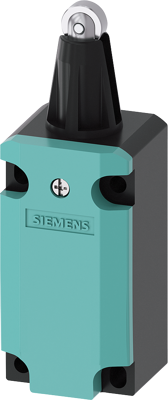

Position switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), roller plunger, screw connection, IP66/IP67, 3SE5112-0CD02-1AA7
Order No.: 80P7383
EAN: 4011209859647
MPN:
3SE5112-0CD02-1AA7
3SE51120CD021AA7
Unit Price (€ / pc.)
77.35 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch metal enclosur 40 mm according to EN 50041 Roller plunger with Stainless steel roller 13 mm, 3 mm overtravel, 1 NO/1 NC quick action contacts, Device connection 1x (M20 x 1.5), actuating/restoring force 30 N only available as complete unit Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Anschluss | Schraubanschluss | |
| Betätiger | Rollenstößel | |
| Polzahl | 2-polig | |
| Schaltfunktion | 1 Schließer + 1 Öffner | |
| Schutzart (IP) | IP66/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
