3SE5114-1BA00-1AF3 | Siemens

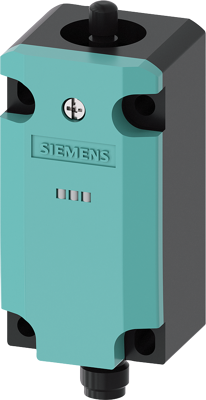

Basic switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), dome plunger, M12-plug, IP66/IP67, 3SE5114-1BA00-1AF3
Order No.: 80P7454
EAN: 4011209692749
MPN:
3SE5114-1BA00-1AF3
3SE51141BA001AF3
Unit Price (€ / pc.)
85.7276 € *
Available: 0 pcs.
Leadtime: 1 Week **
Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 1 NO/1 NC slow-action contacts with M12 connector, 5-pole, fixed with 2 LEDs, yellow/green, 24 V DC without actuator head Pin assignment: Pin 1=21, Pin 2=22 Pin 3=14 and LED green, Pin 4=13 and LED yellow, Pin 5=ground LED Mechanical safety switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
Anschluss | M12-Stecker | |
Betätiger | Kuppenstößel | |
Polzahl | 2-polig | |
Schaltfunktion | 1 Schließer + 1 Öffner | |
Schutzart (IP) | IP66/IP67 |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85365080 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | No |
Substanz Beschreibung | Imidazolidin-2-thion (2-Imidazolin-2-thiol), Blei |
