3SE5122-0LH01 | Siemens

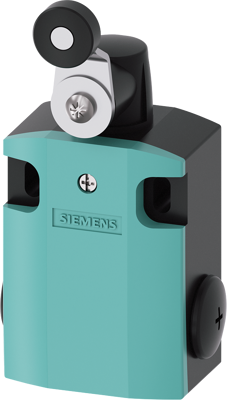

Position switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), adjustable swivel lever, screw connection, IP66/IP67, 3SE5122-0LH01
Order No.: 80P7516
EAN: 4011209693777
MPN:
3SE5122-0LH01
3SE51220LH01
Unit Price (€ / pc.)
71.2691 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch metal enclosur 56 mm wide Device connection 3x (M20x 1.5) 1 NO/2 NC quick action contacts Rotary actuator right/left adjustable, with metal lever 27 mm long and plastic roller 19 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Anschluss | Schraubanschluss | |
| Betätiger | Schwenkhebel verstellbar | |
| Polzahl | 3-polig | |
| Schaltfunktion | 1 Schließer + 2 Öffner | |
| Schutzart (IP) | IP66/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Imidazolidin-2-thion (2-Imidazolin-2-thiol) |
