3SE5122-3KA00 | Siemens

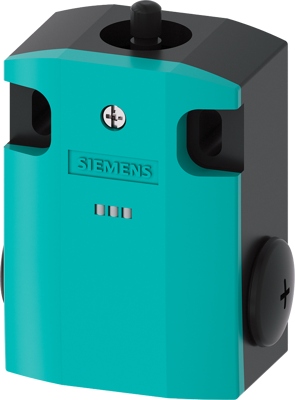

Basic switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), dome plunger, screw connection, IP66/IP67, 3SE5122-3KA00
Order No.: 80P7534
EAN: 4011209693821
MPN:
3SE5122-3KA00
3SE51223KA00
Unit Price (€ / pc.)
69.2461 € *
Available: 0 pcs.
Leadtime: 1 Week **
Basic switch for position switch 3SE51 Metal enclosure 56 mm wide Device connection 3x (M20x 1.5) 1 NO/2 NC slow-action contacts with 2 LEDs, yellow/green 110-230 V AC without actuator head Mechanical safety switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Anschluss | Schraubanschluss | |
| Betätiger | Kuppenstößel | |
| Polzahl | 3-polig | |
| Schaltfunktion | 1 Schließer + 2 Öffner | |
| Schutzart (IP) | IP66/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Imidazolidin-2-thion (2-Imidazolin-2-thiol) |
